What Factors Support the Structural Stability of a Modular House?

When a procurement manager is tasked with sourcing a Residential Modular House for a workforce camp, a disaster relief project, or a remote residential development, the first question is often about price per square meter. That is a natural starting point. But the question that should come first is: how stable is the structure? A modular house that is inexpensive but cannot withstand wind loads, snow loads, or seismic activity is not a bargain; it is a liability. Structural stability is the foundation of safety, durability, and long-term value. It determines whether the house will stand for decades or fail in the first storm season.

This guide is written for buyers who need to understand what makes a Residential Modular House structurally stable. We will cover the key factors: the structural frame, the connection systems, the foundation interface, the wall and roof panels, and the quality control processes that ensure every module meets specification. We will also provide detailed product parameters from our factory at Shanghai Cymdin Industrial Co., Ltd. Whether you are procuring a single unit or a thousand-unit camp, this guide will help you ask the right questions and select a supplier that can deliver a safe, stable, and durable product.

Table of Contents

• 1. What Is the Structural Frame of a Residential Modular House?
• 2. How Do Connection Systems Affect Module Stability?
• 3. What Role Does the Foundation Play in Structural Stability?
• 4. How Do Wall and Roof Panels Contribute to Stability?
• 5. What Quality Control Processes Ensure Structural Integrity?
• 6. What Are the Key Product Parameters from Our Factory?
• 7. Frequently Asked Questions (FAQ)
• 8. Conclusion

1. What Is the Structural Frame of a Residential Modular House?

The structural frame is the skeleton of a Residential Modular House. It is the system of columns, beams, and bracing that carries the weight of the building and resists the forces of wind, snow, and seismic activity. The frame must be designed to meet the specific load requirements of the installation site. For example, a modular house installed in a coastal area must be designed for high wind loads. A modular house installed in a mountainous area must be designed for heavy snow loads. A modular house installed in a seismic zone must be designed for earthquake forces. The frame is typically made from steel, which offers a high strength-to-weight ratio and is dimensionally stable. The steel sections are cut, welded, and bolted to form the modules. The frame is protected against corrosion with a coating, such as hot-dip galvanizing or powder coating. The table below summarizes the key frame components and their functions.

At Shanghai Cymdin Industrial Co., Ltd., our factory designs and manufactures Residential Modular Houses with steel frames that are engineered for the specific load requirements of each project. We use high-strength steel and precision welding to ensure that our frames are strong, durable, and dimensionally accurate. Our engineering team can provide structural calculations and drawings for your project.

2. How Do Connection Systems Affect Module Stability?

The connection systems are the critical links that hold the modules together and transfer loads between them. A Residential Modular House is assembled from multiple modules, and the connections between these modules determine the overall stability of the structure. The connections must be strong enough to resist the design loads, including wind, snow, and seismic forces. They must also be designed to allow for quick and accurate assembly on site. The most common connection systems are bolted connections, which use high-strength bolts to join the modules. The bolts are typically located at the corners and along the edges of the modules. The connections are designed to transfer both vertical and horizontal loads. In some cases, welded connections are used for permanent installations. The table below summarizes the connection types and their characteristics.

At our factory, we design our connection systems to be both strong and easy to assemble. We use high-strength bolts and precision-machined connection plates to ensure a tight fit and reliable load transfer. We also provide detailed assembly drawings and on-site technical support to ensure that the connections are made correctly. Our goal is to provide a Residential Modular House that is not only stable but also quick and easy to install.

3. What Role Does the Foundation Play in Structural Stability?

The foundation is the interface between the Residential Modular House and the ground. It is the element that transfers the loads from the structure to the soil. A properly designed foundation is essential for structural stability. If the foundation is inadequate, the house may settle unevenly, causing cracks in the walls, distortion of the frame, and even collapse. The type of foundation required depends on the soil conditions, the load of the house, and the local building codes. The most common foundation types for modular houses are concrete slab, concrete piers, and screw piles. A concrete slab is a continuous foundation that supports the entire footprint of the house. It is suitable for stable soils with good bearing capacity. Concrete piers are individual columns that support the corners and intermediate points of the house. They are suitable for sloping sites and soils with moderate bearing capacity. Screw piles are steel shafts with helical blades that are screwed into the ground. They are suitable for soft soils and sites with limited access. The table below summarizes the foundation types.

At Shanghai Cymdin Industrial Co., Ltd., we provide foundation design assistance to our customers. Our engineering team can review the soil conditions and recommend the appropriate foundation type for the Residential Modular House. We also provide the connection details between the foundation and the modules to ensure that the loads are transferred safely. Our goal is to provide a complete solution that includes the house, the foundation, and the installation.

4. How Do Wall and Roof Panels Contribute to Stability?

The wall and roof panels of a Residential Modular House are not just cladding; they are structural elements that contribute to the overall stability of the building. The panels act as shear walls, resisting lateral forces such as wind and seismic loads. They also provide insulation and weather protection. The panels are typically made from a sandwich construction, with an insulating core bonded between two outer skins. The skins can be made from steel, aluminum, or fiber cement. The core is typically polyurethane (PU), polystyrene (EPS), or rock wool. The panels are connected to the steel frame with self-tapping screws or bolts. The connections must be designed to transfer the shear forces from the panels to the frame. The table below summarizes the panel types and their characteristics.

At our factory, we use high-quality sandwich panels for our Residential Modular Houses. We select the panel type and thickness based on the thermal and structural requirements of the project. We also ensure that the panel connections are designed to transfer the shear forces effectively. Our goal is to provide a house that is not only stable but also energy-efficient and comfortable.

5. What Quality Control Processes Ensure Structural Integrity?

Quality control is the final safeguard for the structural stability of a Residential Modular House. Even the best design and the highest quality materials can be compromised by poor workmanship. A comprehensive quality control program ensures that every module is manufactured to the required specifications and that every connection is made correctly. The key elements of a quality control program for modular houses are incoming material inspection, in-process inspection, and final inspection. Incoming material inspection verifies that the steel, panels, and other components meet the specified standards. In-process inspection verifies that the frame is welded and assembled correctly, that the panels are installed correctly, and that the dimensions are accurate. Final inspection verifies that the completed module meets all requirements before it is shipped. The table below summarizes the quality control processes.

At Shanghai Cymdin Industrial Co., Ltd., our factory has implemented a rigorous quality control program for our Residential Modular Houses. We are ISO 9001 certified, and we maintain detailed records of all inspections. Our quality control team is independent of the production team, ensuring that inspections are objective and unbiased. We also welcome third-party inspections by our customers or their representatives. Our goal is to provide our customers with a product that meets the highest standards of quality and safety.

6. What Are the Key Product Parameters from Our Factory?

The following table provides the key product parameters for our Residential Modular Houses. These houses are designed for a wide range of applications, including workforce accommodation, disaster relief, remote residential developments, and commercial projects. Our factory can also produce custom houses to meet specific requirements.

At our factory, we manufacture our Residential Modular Houses to meet these specifications and more. We can customize the size, layout, materials, and finishes to suit your specific requirements. Our quality control system includes inspection of raw materials, in-process inspection, and final inspection before shipment. Our goal is to provide our customers with high-quality Residential Modular Houses that are safe, stable, and durable.

7. Frequently Asked Questions (FAQ)

Question 1: What is the design life of a Residential Modular House?

Answer: The design life of a Residential Modular House depends on the materials, the design, and the maintenance. A high-quality steel-frame modular house with proper corrosion protection and regular maintenance can have a design life of 30 to 50 years or more. The structural frame is typically designed for a minimum of 50 years, while the panels and finishes may need to be replaced or refurbished after 15-25 years. Our factory can provide specific design life information for your project.

Question 2: Can a Residential Modular House be stacked to create multi-story buildings?

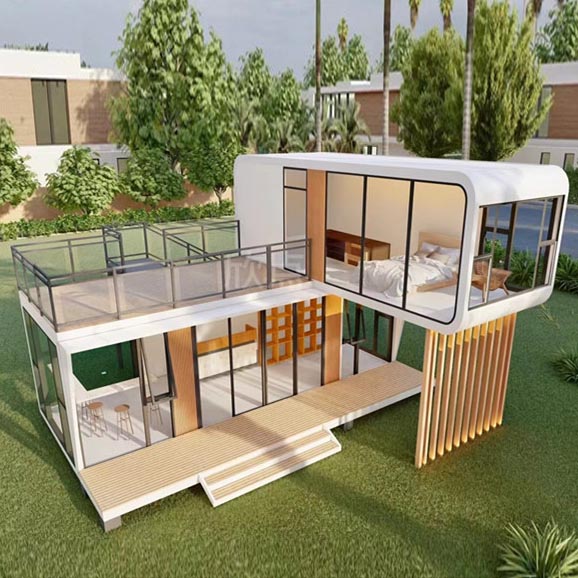

Answer: Yes, Residential Modular Houses can be stacked to create multi-story buildings, provided that the structural frame and connections are designed for the additional loads. The corner posts and connection systems must be reinforced to support the weight of the upper modules. Our factory can design and manufacture stacked modular houses for two-story, three-story, and even higher applications.

Question 3: How is a Residential Modular House transported to the site?

Answer: A Residential Modular House is transported to the site as completed modules on flatbed trucks or container ships. Each module is designed to be lifted by crane or forklift at the site. The modules are typically 3-4 meters wide and up to 12 meters long, which allows them to be transported on standard roads. For larger modules, special permits and escorts may be required. Our factory provides detailed transportation and lifting plans for each project.

Question 4: What foundation is required for a Residential Modular House?

Answer: The foundation required for a Residential Modular House depends on the soil conditions and the local building codes. Common foundation types include concrete slab, concrete piers, and screw piles. The foundation must be designed to support the weight of the house and to resist the design loads. Our engineering team can provide foundation design recommendations based on the site conditions and the house specifications.

Question 5: Can a Residential Modular House be customized?

Answer: Yes, Residential Modular Houses can be customized to meet specific requirements. The size, layout, materials, finishes, windows, doors, electrical system, and plumbing system can all be customized. Our factory has a team of designers and engineers who can work with you to create a custom modular house that meets your needs. We can also provide interior design services if required.

8. Conclusion

The structural stability of a Residential Modular House is determined by the design of the steel frame, the strength of the connection systems, the interface with the foundation, the contribution of the wall and roof panels, and the rigor of the quality control processes. For procurement managers, understanding these factors is essential for selecting a product that is safe, durable, and reliable. A cheap modular house that cannot withstand the design loads is not a bargain; it is a risk. At Shanghai Cymdin Industrial Co., Ltd., our factory has the expertise and the equipment to manufacture high-quality Residential Modular Houses that meet the most demanding requirements. We use high-strength steel, precision manufacturing, and rigorous quality control to ensure that every house we produce is structurally stable and built to last.

Whether you are procuring a single unit or a large camp, we invite you to contact us to discuss your requirements. We can provide technical data, structural calculations, and samples. Our engineering team can assist with the design and specification of your project. Our commitment to quality and customer satisfaction has made us a trusted partner for modular construction projects around the world.

Contact Shanghai Cymdin Industrial Co., Ltd. today to discuss your Residential Modular House requirements and discover how our products can provide the structural stability you need.
