China Modular Simple and Generous Fast Assembly of Double Wing Folding Room Manufacturer, Supplier, Factory

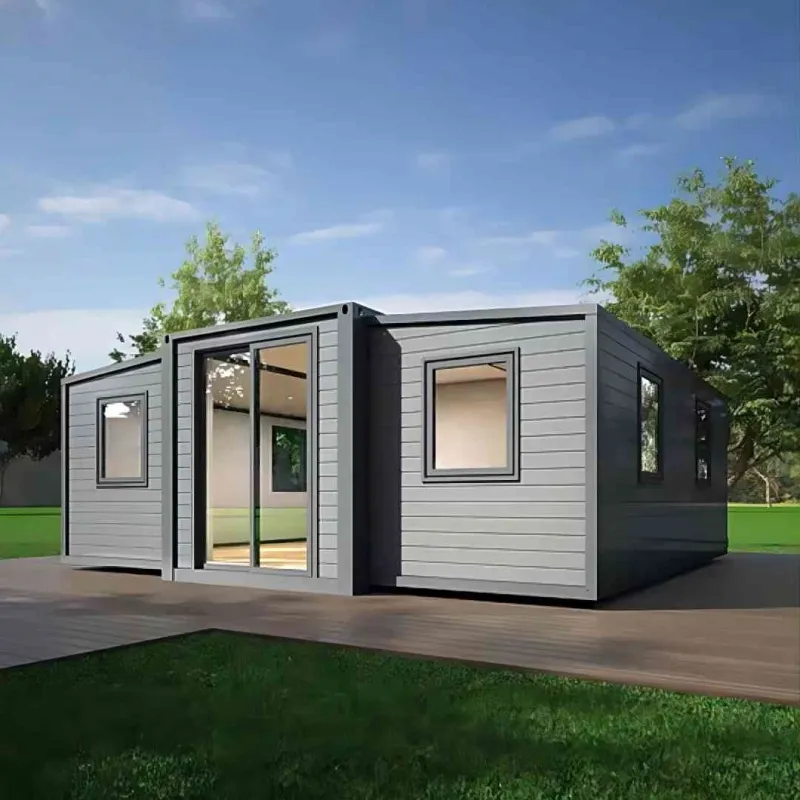

The Modular Simple and Generous Fast Assembly of Double Wing Folding Room by Cymdin is an innovative, eco-friendly, and highly efficient space solution. Engineered for fast deployment and flexible living/working space, this double-wing expanded structure requires no foundation or concrete construction and can be fully set up in just 15 minutes by 2 workers.
Made with heavy-duty galvanized steel frames and fire-resistant sandwich panels, it provides high durability, heat insulation, and weather protection while strictly adhering to modern green living and low-carbon standards.
Product Advantages
15-Minute Rapid Assembly: Plug-and-play setup with no welding or heavy bolts required. Folds out easily and connects directly to pre-installed electrical systems and water supplies.
No Concrete Foundation Needed: Saves significant labor and preparation time, making it ideal for immediate usage.
High-Strength & Durable Structure: Built with heavy-duty galvanized steel (Q235) supporting up to 3 stacking layers.
Eco-Friendly & Green Living: Constructed with 100% recyclable steel and non-toxic, formaldehyde-free sandwich panels. Materials comply with EU environmental standards.
Excellent Insulation & Protection: High-density EPS / Rock Wool insulation reduces heat transfer by 60%. The structure is fire-resistant (Class A), waterproof, moisture-proof, and termite-proof.
Flexible & Customizable: Fully customizable interior layout, bedroom counts, window positions, door types, and exterior colors.
Technical Specifications
| Parameter | Specification Details |
| Brand | Cymdin |
| Frame Material | Galvanized steel (Q235), 2.5mm thickness |
| Panel Material | EPS / Rock Wool sandwich panel, 50mm thickness (Fire Rating: Class A) |
| Folded Size (L×W×H) | 5.8m × 1.2m × 2.5m |
| Expanded Size (L×W×H) | 5.8m × 6.2m × 2.5m (Double Wing) |
| Installation Time | 15 minutes (2 workers, no foundation required) |
| Pre-Installed System | Pre-wired LED system, switch boxes, window frames, standard 3/4" water inlet |
| Environmental Feature | 100% recyclable steel, non-toxic, formaldehyde-free panels |
| Customization | Colors, layouts, dimensions, doors/windows, furniture & appliances |
Simple Installation
1.Unfold: Expand the hydraulic-assisted double wings from transport width (1.2m) to full space (6.2m).
2.Lock: Secure the corner hinges and structural locks.
3.Connect: Plug into pre-wired LED wiring, switch boxes, and attach standard 3/4" water inlets to existing utilities.
4.Relocate/Fold: Easily fold back to 1.2m width for truck transport or storage when no longer needed.
Versatile Applications
The Modular Simple and Generous Fast Assembly of Double Wing Folding Room is a versatile space-saving solution suitable for both commercial and residential environments:
Living & Accommodation: Remote housing, homestays, glamping resorts, emergency disaster relief shelters, extra bedrooms.
Commercial & Office: Construction site offices, pop-up shops, outdoor cafes, storage units, exhibition booths.
Outdoor Facilities: Campsites, tourist attractions, farmhouses, and courtyard extensions.
About Cymdin

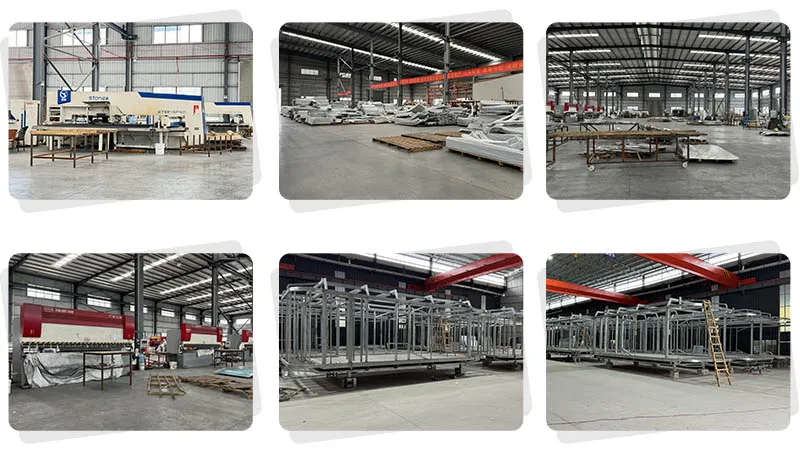

Established in 2008, Cymdin operates a 5,800 square meter production plant equipped with advanced machinery including large laser cutting equipment, CNC bending machines, shearing machines, and stamping equipment. Supported by 36 technical staff, professional 3D graphic modelers, and plasma welding technicians, we guarantee reliable, high-quality production.
Certifications: Business License, Account Opening Permit, ISO9001 Certification.
Cooperative Partners: High-speed Traffic Police Corps, Ningbo Traffic Police Brigade, Zhejiang Hangzhou Alibaba, Taobao, Real Estate Developers, Urban Security Brigade.
Product Portfolio: Double wing folding rooms, security boxes, traffic police booths, silent silos, space capsules, apple pods, and portable toilets.
After-Sales & Service Support
24-Hour Telephone Support: Immediate customer response with on-site maintenance arrival within 30 minutes after notification (domestic service).
Global Support: 5-year structural warranty, 1-year product warranty, and 24/7 online after-sales assistance.
Installation Guidance: Detailed installation instructions and operational videos provided with every order.
Frequently Asked Questions (FAQ)
Q1: What is a Modular Simple and Generous Fast Assembly of Double Wing Folding Room?
A: It is an expandable modular structure that folds on both sides to expand into a spacious living or working space.
Q2: How long does it take to install?
A: It takes approximately 15 minutes with 2 workers, without requiring concrete foundation construction.
Q3: Can the layout and bedroom counts be customized?
A: Yes! We can customize dimensions, interior layouts, number of bedrooms, and supply furniture or home appliances based on your exact requirements.
Q4: What is the lead time for production and delivery?
A: Generally within 10–20 days, depending on order quantity and design requirements.
